Ecorobotix

TOWARDS LOW-IMPACT AGRICULTURE WITH ARA

It is quite easy to talk about zero residues, low environmental impact, and sustainability in agriculture. It is not as easy to convert a company to procedures and processes that are truly green.

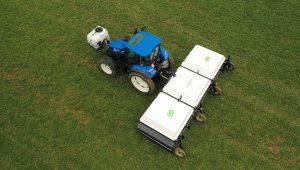

This is the reason why Ecorobotix has devoted time and energy to developing ARA, the smart “boom” sprayer that will allow you to stop wasting herbicides, fungicides, insecticides, and foliar fertilizers.

ARA performs work by itself: it detects and recognizes the crop or weed and then sprays it with the quantity of substance set by you. You control everything from the comfort of the tractor while enjoying the benefits of innovative and intelligent crop protection.

Among others, we can highlight savings on crop protection products and fertilizers. The precision of the analysis and 156 nozzles spaced 4 cm apart, allow ARA to perform ultra-accurate and localized spraying.

AI

Agricoltura 4.0

MAIN CHARACTERSTICS
Detection
Green on Green / Green on Brown
Detection system
Multi-Camera
Maximum speed
2 m/s - 7 km/h
Max superficie coperta in un giorno
Up to 96 Ha
Max surface covered per day
6 m
Work width (max)
Between 15 and 50 cm
Nozzle pattern / Resolution
36 cm2
Applications
Fertilizers, herbicides, insecticides, fungicides
Performance
Sprayer
156 nozzles
Working width
6 m
Crop spacing
Between 35 and 70 cm
Wheel spacing
Between 150 and 200 cm
Hydraulic pressure from tractor
min 100 bar
PTO
3 kW max (4 CV)
DIMENSIONS
Front tank (full - 600 liters)
700 kg
Rear
900 kg
Maximum dimensions of closed system (transport)
260 cm, 280 cm, 330 cm (LxWxH)
Maximum dimensions of open system
260 cm, 660 cm, 130 cm (LxWxH)
Power
idraulica elettrica
WARRANTY & COMMUNICATION
Robot warranty
2 years
Communication
WiFi, 3G/4G
Support
Software update
OTA
Control and configuration
Tablet
Level 1 support
12Steps

QUESTIONS ABOUT ARA ?

ARA can spray herbicides, fungicides, insecticides, and liquid fertilizers in an ultra-precise and localized manner

Currently, the following crop algorithms are developed for ARA : sugar beet, cotton, rapeseed, potato sprouts, beans, spinach, onion, chicory, iceberg lettuce, lettuce, dock, milk thistle, polyphyte lawn

Yes, algorithms that can recognize other crops, including soybeans, wheat and corn, are being developed

Learn how ARA can help you

SWITCH TO PRECISION AGRICULTURE WITH ARA

ARA is a concentration of technology that simplifies a very complex task: reducing the use of chemicals in agriculture to a minimum while doing the job.

With a precision of 6×6 cm and thanks to the three mobile platforms each equipped with 52 nozzles, ARA limits transient phytotoxicity and avoids the drift effect when spraying herbicides.

ARA’s algorithms are developed to recognise crops at different growth phases, which explains its high level of precision.

You can use it equally for field vegetables, row crops, lawns, and pastures.
It allows  you to carry out a truly sustainable crop protection, which is what you aim for in zero residue

Bring ARA to your Farm

EXTENSIVE FARMING

CROPS RECOGNIZED

Row crops

  • Maize
  • Soybeans
  • Beetroot
  • Cotton
  • Rapeseed
  • Volunteer potatoes
  • Beetroot, onion, endive, carrot
  • Wheat (from 2024)
piantine di soia

HORTICULTURE, FIELDS AND PASTURES

Horticulture

  • Spinach
  • Onion
  • Lettuce
  • Endive
  • Green beans
  • Carrot (2023)
  • Potatoes (2024)


Fields and pasture

  • Lawns/Sports fields
  • Pasture: rumex, milk thistle, senecio (2024)
